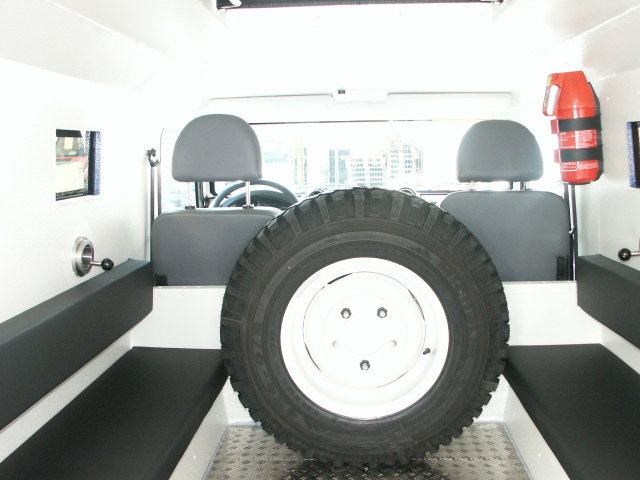

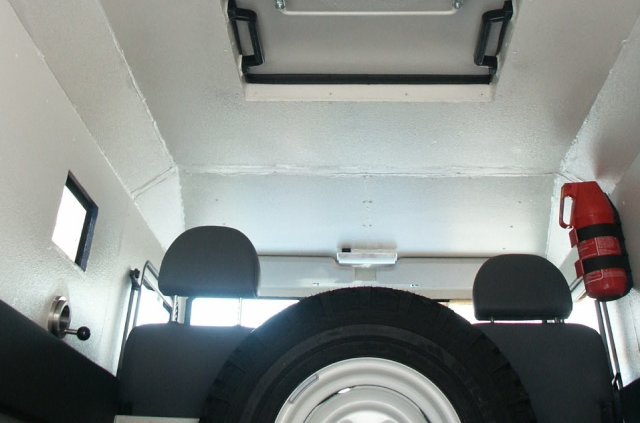

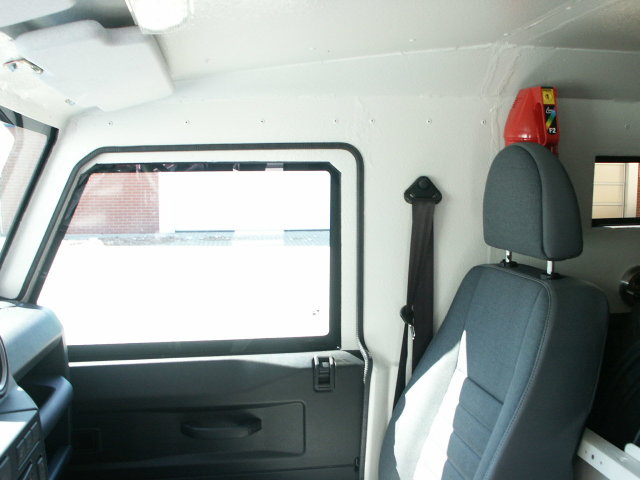

Bei Rückfragen Tel. +49 551/820224! Farbe: violet blau (RAL 5000) , Stoffsitze: grau, FRIEDRICHS AMOURED ESCORT VEHICLE TYPE F- EV 110 HT. Build in origninal Land Rover-Defender 110 HT. Basis-Chassis (included) : Land Rover Defender 110 HT, wheelbase 2794 mm, 6 speed manual gear box with high and low ratio 4x4 drive, tires: 7.50 R 16, air conditioning fitted to front of vehicle, fire extinguisher in cab area, no heater in rear cab, spare wheel monted behind driver's seat in rear cabin, total-length approx. 4599mm, Payload approx. 400kg. Mouring: Cross-country vehicle will be amoured with Friederichs special steel. The armouring is integrated in the body and protects the vehicle according to EEC/CEN protection class VPAM level 6 ( cal. 7.62x39.) Bullet-Protection: Used amouring material special steel and windows multilayer resistant glass are safe against bullet as: machine-gun Kalashnikov AK 47, 7.62 x39 FJ/PB/FEC, Protection class VPAM 6, no splinter. ( All used materials for armouring have been subject to tests by the State bombardment authorities under conditions by the Regional Criminal Investigation Department. Armouring-Execution of Defender 110 HT: windscreen (straight) multilayer bullet resistant glass, right and left side Driver-cabin window as above, front area between floor and windscreen, right and left side of driver-cabin incl. doors, rear wall of the vehicle, complete roof till rear wall, fold-up hatches in the roof, wheel-boxes partially, 2 small side windows right and left side wall, 1 small window in the rear, all windows are fixed, Details: Omindirectional light blue, optica warn system, siren fitted to the front, roof area will be modified to provide two outward openings (roof hatches), Roof hatches will be sealed using rubber sections to prevent the ingress of dust and moisture when closed. Cab Seating: seating is provided, rear of the cab seats ( for a total of 6 personel, 3 on either side of vehicle) , seats will be full length having foam base covered in black PVC leather cloth, back rest will be fitted full length of the seat at a convenient back support position, Gun Ports: 5 gun ports are provided 2 to eeach side of the body and 1 in thew rear door, Side and rear windows: 5 small armoured windows are provided 2 to each side of the body 1 in the rear door.
Panzerungen gem. EEC / CEN Schutz Klasse FB4+-NS / BR4+-NS
Gewichte Anlieferung: VA 920 kg + HA 770 kg = Gesamtgewicht 1.690 kg
Ausbaugewichte: VA 180 + HA 510 kg = Gesamt 690 kg
Gewichte Fertig: VA 1100 kg + HA 1280 kg = Ges.gew. 2.380 kg
+ Fahrer 75 kg: 2.455 kg
Zulässiges Gesamtgewicht: VA 1.250 kg + HA 1.980 kg = gesamt 3.050 kg
verbleibende "Nutzlast": 595 kg
1x Beifahrer 75 kg = 495 kg
max. 6x Mitfahrer a 75 kg (450 kg) = Rest 45 kg
NEU aus Lagerbestand ohne Zulassung, nicht in der EU zulassungsfähig,
NEW from stock without approval, not in EU approvable
Fahrzeug hat zwischen 10km und 100km.
